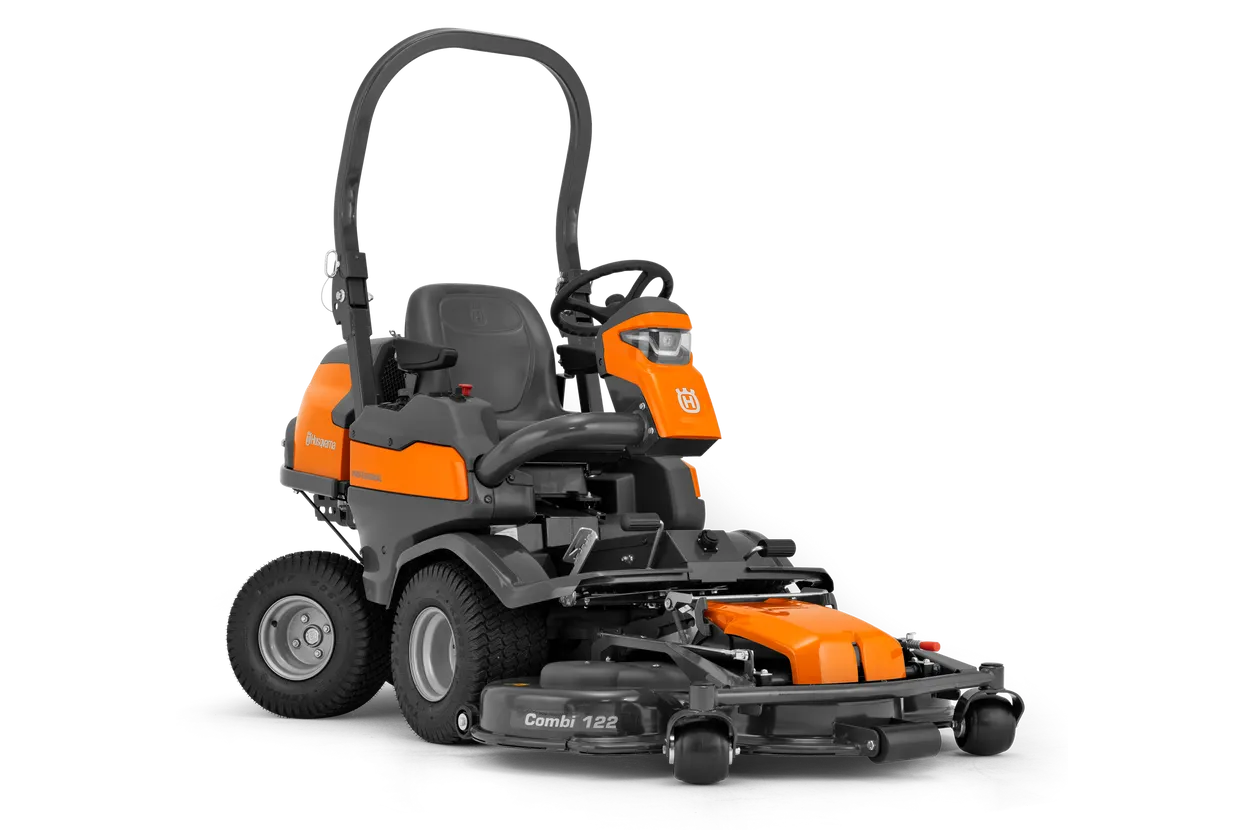

HUSQVARNA P 524X EFI Ride-On Mower

HUSQVARNA P 524X EFI Ride-On Mower

Husqvarna P 524X EFI is a front-mounted petrol ride-on lawn mower, built for commercial use. Compact and versatile with articulated steering, All-Wheel Drive and a Kawasaki engine with Electronic Fuel Injection for enhanced power and torque. Intended for facility management companies, sports clubs and for contractors who want a maneuverable ride-on solution for year-round duties in complex areas. As all 500-series, delivered deck-less but adapted for high-capacity cutting decks up to 137 cm.

Engine  (P524X EFI RIDER P 524X EFI (2023-)
Power/fuel type - Petrol
Net power at preset rpm Energy1 - 15,6 kW
Net power at preset rpm - 3 000 rpm
Motor/engine manufacturer - Kawasaki
Engine name - FX Series V-Twin
Cylinder displacement - 726 cm³
Cylinders - 2
Engine cooling - Air
Engine lubrication type - Full pressure with oil filter
Oil filter - Yes

Emission
Exhaust emissions (CO₂ EU V)2 - 792 g/kWh

Battery
Battery capacity - 24 Ah
Battery type - Lead-Acid
Battery pack weight - 7,2 kg
Battery manufacturer - Global

Cutting deck
Uncut circle - 50 cm
Cutting width, min - 112 cm
Cutting width, max - 137 cm
Cutting height min - 25 mm
Cutting height max - 100 mm
Blade engagement - Electric clutch

Dimensions
Tyre dimensions, front - 18x8,5-8
Tyre dimensions, rear - 18x8,5-8
Wheelbase - 100 cm
Ground clearance - 130 mm
Base machine, length - 206 cm
Base machine, width - 98 cm
Base machine, height - 122 cm
Gross weight towed3 - 200 kg
Weight (excl. cutting equipment) - 437 kg

Drive system
PTO (Power Take Off) - Belt-driven
Transmission type - Hydrostatic
Transmission manufacturer, rear - Kanzaki
Drive method - Dual pedal-operation
Speed forward max - 13 km/h
Speed reverse max - 5,6 mph
Speed reverse max - 9 km/h
Transmission manufacturer, front - Kanzaki
Transmission model, front - KTM 23LB
Transmission model, rear - KTM 23SB

Equipment
Seat suspension - Yes
Seat type - Professional
Hour meter type - Digital
Seat material - Vinyl
Seat back height - High
Foldable seat - Yes
Steering wheel type - Professional
Parking brake, type - Disc

Vibration
Vibration level steering wheel - 2,5 m/s²
Vibration level seat - 0,5 m/s²

Sound and noise
Sound pressure level at operators ear - 91 dB(A)
Sound power level, guaranteed (LWA) - 105 dB(A)
Sound power level, measured - 105 dB(A)
