HUSQVARNA P 525DX Ride-on Mower

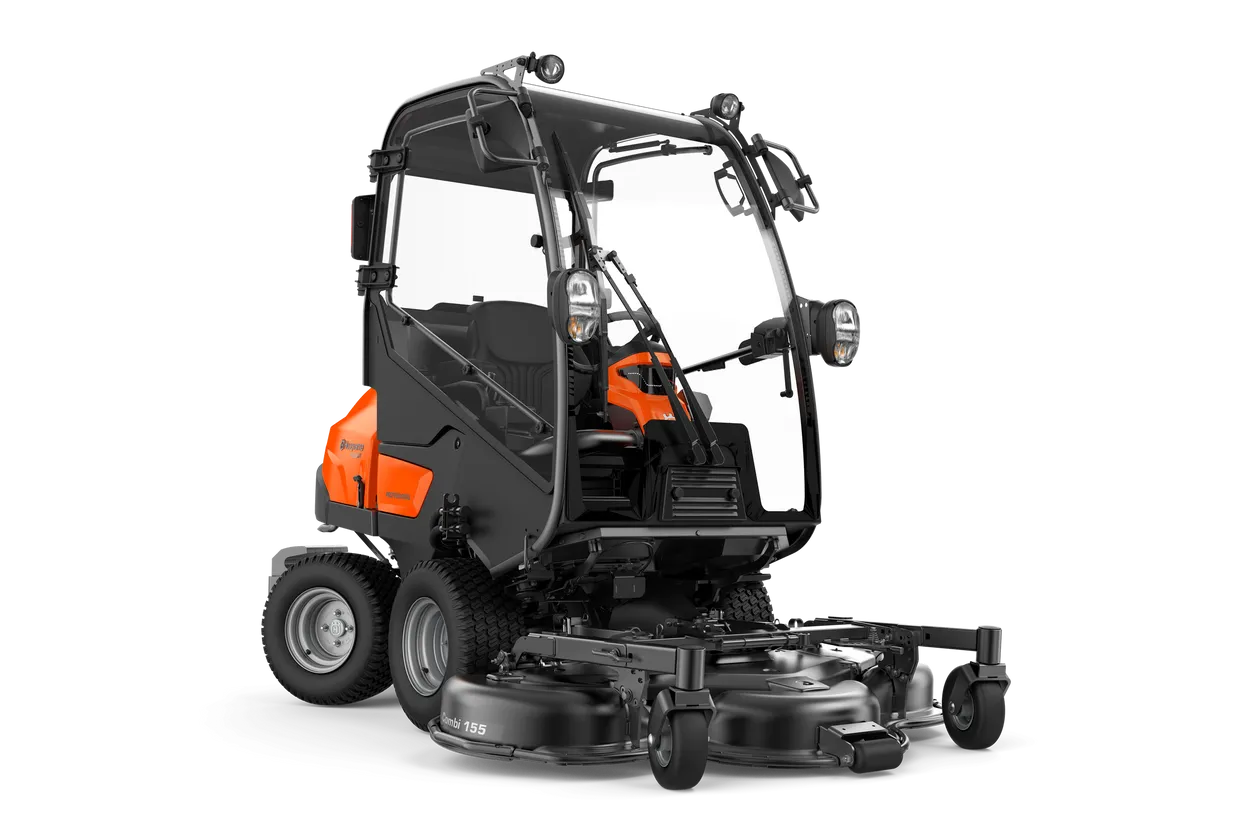

HUSQVARNA P 525DX Ride-on Mower (with cabin)

High-capacity diesel-powered front mower with factory assembled cabin, offering unbeatable maneuverability and productivity in complex and narrow environments as well as in larger-sized areas all year round. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimized trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket, broom, folding plough and cabin give increased productivity all-year round. Husqvarna P 525D is delivered deckles and can be fitted with 132 and 155 cm Combi cutting decks.

The cabin is anti vibrated from the chassi, resulting in significantly lowered vibration and noise. The spacious cabin offers doors of glass, front window up on roof and high specified Grammer seat, alltogether increasing driver's comfort all year round. Fully equipped with hydraulic kit, LED work lights, road lights, counter weight, heater, beacon light etc. The cabin is easily removed from the chassi, in case the cabin is not needed during summer time. ROPS structure is integrated in the cabin.

Engine (P 525DX CABIN 2021)
Power/fuel type - Diesel
Net power at preset rpm Energy1 - 17,8 kW
Net power at preset rpm - 3 000 rpm
Motor/engine manufacturer - Kubota
Engine name - D1105
Cylinder displacement - 1 123 cm³
Cylinders - 3
Engine cooling - Liquid
Engine lubrication type - Pressure with Oilfilter
Oil filter - Yes

Emission
Exhaust emissions (CO₂ EU V)2 - 1 018 g/kWh

Battery
Battery capacity - 62 Ah
Battery type - Lead-Acid
Battery pack weight - 14 kg
Battery manufacturer - Exide

Cutting deck
Uncut circle - 58 cm
Cutting width, min - 132 cm
Cutting width, max - 155 cm
Cutting height min - 30 mm
Cutting height max - 112 mm
Blade engagement - Electric clutch

Dimensions
Tyre dimensions, front - 20x10-10
Tyre dimensions, rear - 20x10-10
Wheelbase - 106 cm
Ground clearance - 140 mm
Base machine, length - 226,9 cm
Base machine, width - 115,3 cm
Base machine, height - 200,8 cm
Gross weight towed - 100 kg
Weight (excl. cutting equipment) - 918 kg

Drive system
PTO (Power Take Off) - Shaft drive
Transmission type - Hydrostatic
Transmission manufacturer, rear - Kanzaki
Drive method - Dual pedal-operation
Speed forward max - 19 km/h
Speed reverse max - 9,3 mph
Speed reverse max - 15 km/h
Transmission manufacturer, front - Kanzaki
Transmission model, front - KTM 23LC
Transmission model, rear - KTM 23SC

Equipment
Seat suspension - Yes
Seat type - Full suspension, arm rests
Hour meter type - Digital
Seat material - Vinyl
Seat back height - High
Foldable seat - Yes
Steering wheel type - Professional
Parking brake, type - Disc

Vibration
Vibration level steering wheel - 1,7 m/s²
Vibration level seat - 0,7 m/s²

Sound and noise
Sound pressure level at operators ear - 91 dB(A)
Sound power level, guaranteed (LWA) - 105 dB(A)
Sound power level, measured - 104 dB(A)
