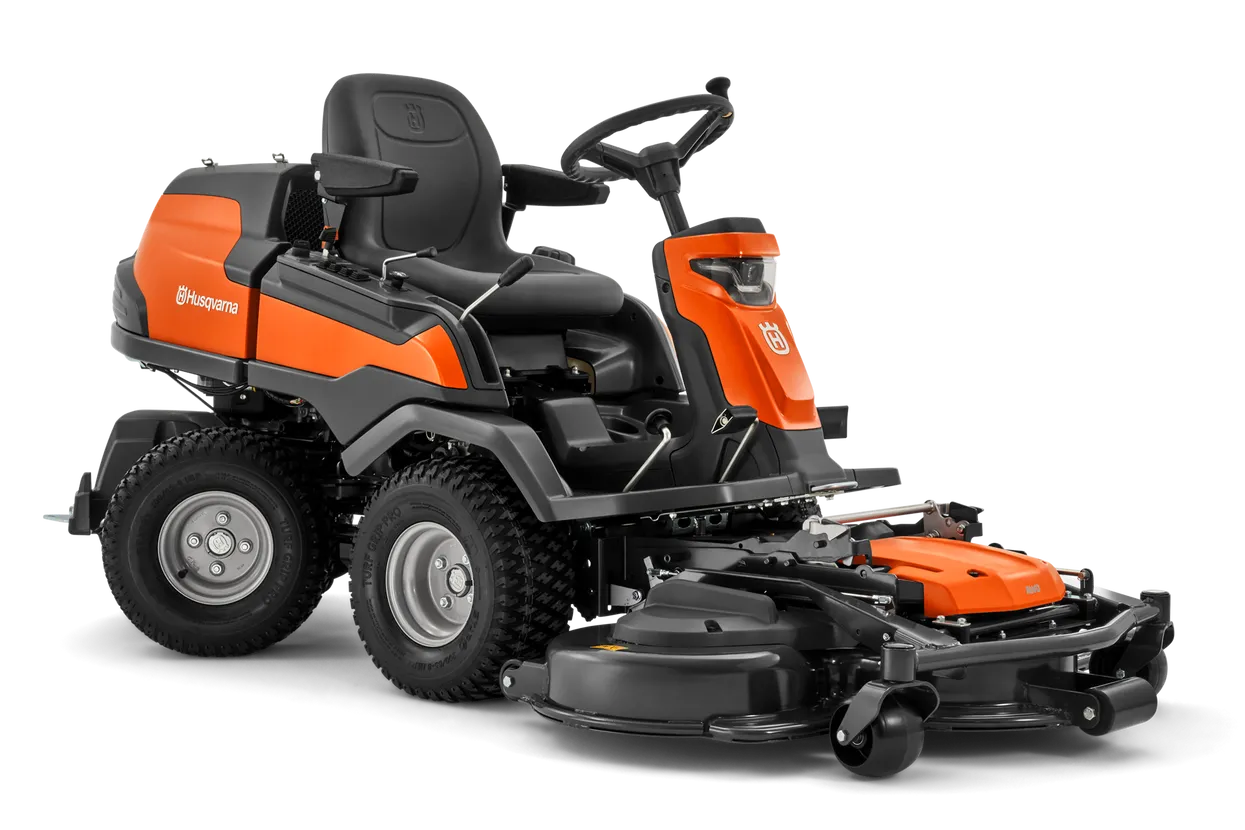

Husqvarna R 420TsX AWD Ride-on Front Mower

A compact, high-performance All-Wheel-Drive Rider with powerful Kawasaki V-twin Engine and power steering that easily manages large, tight and hilly areas. The unique XChange attachment frame allows you to change attachment quickly and without the use of tools. Thanks to Bluetooth connectivity, you easily monitor your Rider with the Husqvarna Connect app. Equipped with Dual LED lights, Turnkey Start, an adjustable steering wheel and a convenient luggage rack, R 420TsX AWD is an excellent choice for private estate owners, sports facilities and hotels with large areas to maintain year-round.

Engine
R 420TsX AWD 2019-
Power/fuel type - Petrol
Net power at preset rpm Energy1 - 14 kW
Net power at preset rpm - 3 000 rpm
Motor/engine manufacturer - Kawasaki
Engine name - FS Series V-Twin
Cylinder displacement - 726 cm³
Cylinders - 2
Engine cooling - Fan/Air
Engine lubrication type - Full pressure
Oil filter - Yes

Emission
Exhaust emissions (CO₂ EU V)2 - 792 g/kWh

Battery
Battery capacity - 24 Ah
Battery type - Lead-Acid
Battery pack weight - 7 kg
Battery manufacturer - Global

Cutting deck
Uncut circle - 70 cm
Cutting width, min - 103 cm
Cutting width, max - 122 cm
Cutting height min - 25 mm
Cutting height max - 75 mm
Blade engagement - Electric clutch

Dimensions
Tyre dimensions, front - 200/65-8
Tyre dimensions, rear - 200/65-8
Wheelbase - 95,8 cm
Ground clearance - 110 mm
Base machine, length - 206,6 cm
Base machine, width - 96,4 cm
Base machine, height - 117,8 cm
Gross weight towed3 - 150 kg
Weight (excl. cutting equipment) - 316 kg

Drive system
PTO (Power Take Off) - Belt Drive
Transmission type - Hydrostatic
Transmission manufacturer, rear - Tuff Torq
Drive method - Dual pedal-operation
Speed forward max - 9 km/h
Speed reverse max - 4,3 mph
Speed reverse max - 7 km/h
Transmission manufacturer, front - Tuff Torq
Transmission model, front - KTM13U
Transmission model, rear - K664U

Equipment
Seat suspension - Yes
Seat type - Premium
Hour meter type - Digital
Seat material - Vinyl
Seat back height - High
Foldable seat - Yes
Steering wheel type - Ergonomic - soft grip
Parking brake, type - Disc

Vibration
Vibration level steering wheel - 2,67 m/s²
Vibration level seat - 0,15 m/s²

Sound and noise
Sound pressure level at operators ear - 87 dB(A)
Sound power level, guaranteed (LWA) - 102 dB(A)
Sound power level, measured - 101 dB(A)
